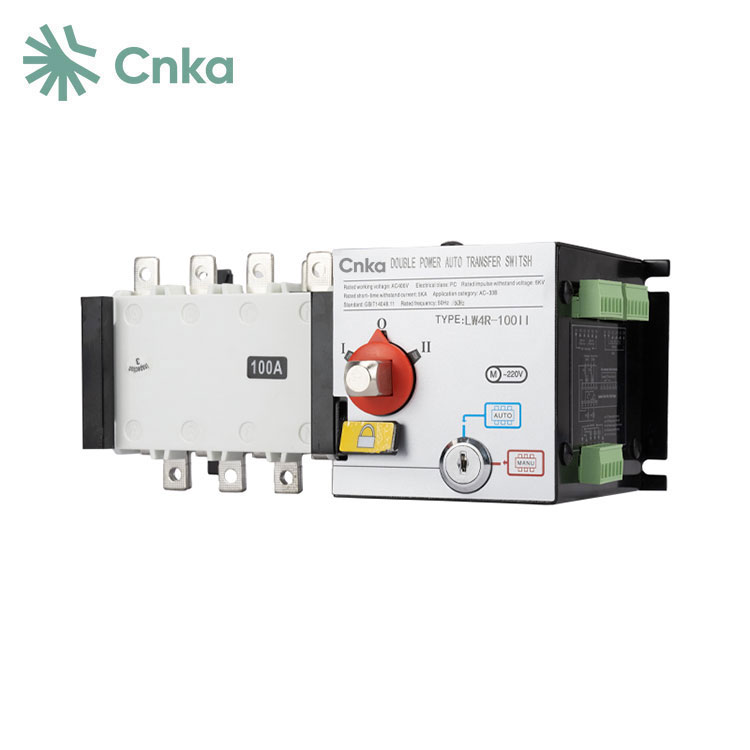

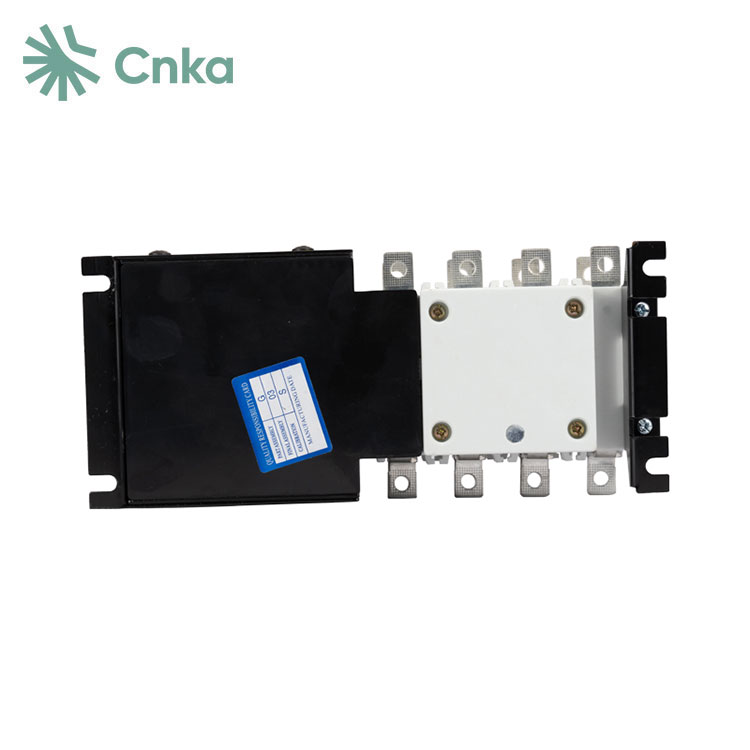

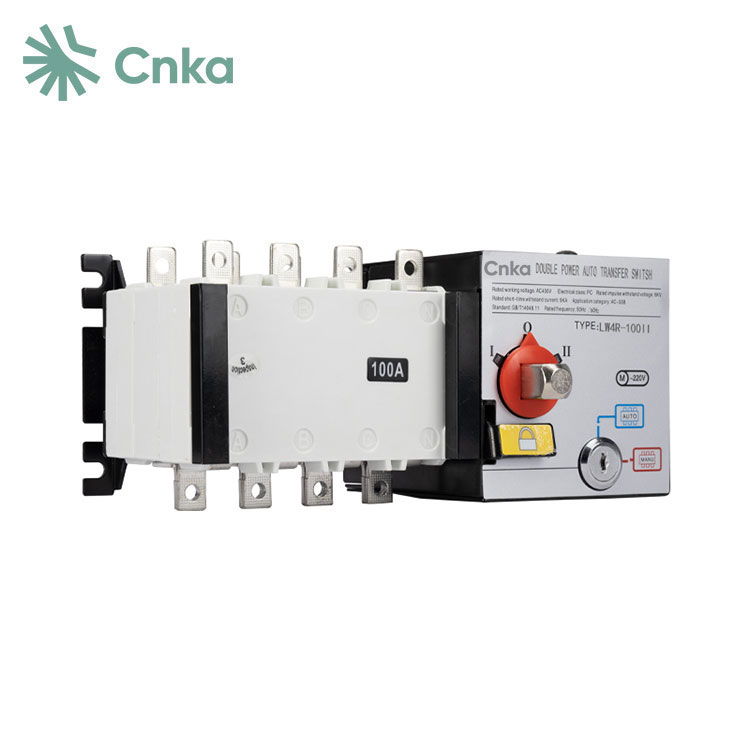

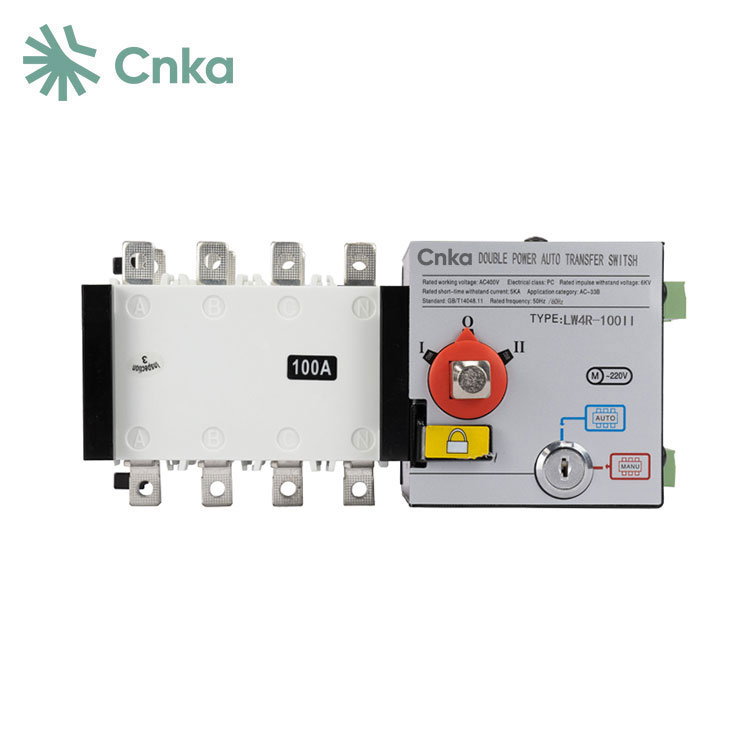

China Suppliers CNKA nawakake dhaftar rega selaras kanggo 200 amp ngalih transfer otomatis. Piranti iki kalebu siji utawa luwih piranti ngoper lan komponen tambahan sing dibutuhake. Iku ndeteksi sirkuit daya lan kanthi otomatis ngalih siji utawa luwih sirkuit mbukak saka sumber daya liyane.
|
Rated pemanasan saiki (A) |
100 |
160 |
250 |
400 |
630 |
1000 |
1250 |
1600 |
2000 |
2500 |
3200 |
|
|
Tegangan isolasi terukur Ui (V) |
750 |
|
1000 |
|||||||||
|
Tegangan kerja Rated (Ue) |
AC 400 V |
|||||||||||
|
Dirating impact tahan |
8 |
|
12 |
|||||||||
|
Dirating |
AC-31A |
100 |
160 |
250 |
400 |
630 |
1000 |
1250 |
1600 |
2000 |
2500 |
3200 |
|
AC-35A |
100 |
160 |
250 |
400 |
630 |
1000 |
1250 |
1600 |
2000 |
2500 |
3200 |
|
|
AC-33A |
100 |
160 |
250 |
400 |
630 |
1000 |
1250 |
1600 |
2000 |
2500 |
3200 |
|
|
Dirating short-time tahan |
7 |
9 |
13 |
|
50 |
|
55 |
|||||
|
Dirating watesan short-circuit |
100 |
70 |
100 |
120 |
80 |
|||||||
|
sasmita |
Kelas PC |
|||||||||||
|
Standar |
IEC947-6-1 GB14048.11-2008 |
|||||||||||
|
Rated kapasitas nyambungake |
10 le |
|||||||||||
|
Kapasitas pecah (A |
8 le |
|||||||||||
|
Tegangan suplai kontrol (V) |
DC24V, 48V, 110V, AC220V |
|||||||||||
|
Wektu Konversi (S) |
0.5 |
1 |
1.1 |
1.2 |
1.25 |
2.45 |
||||||
1 Nggunakake mekanisme sambungan transversal kontak komposit dual-baris kanthi panyimpenan pra-energi motor mikro lan teknologi kontrol mikroelektronik kanggo entuk flashover nol kanthi efektif lan ngilangi kabutuhan tutup pemadam busur, njamin keamanan lan linuwih.
2 Nggabungake teknologi zero-crossing kanggo ningkatake kinerja sakabehe.
3 Nawakake kinerja safety sing apik banget kanthi operasi sing dipercaya lan stabil.
4 Nggunakake mekanisme tarik horisontal kontak komposit dual-baris, bebarengan karo pra-panyimpenan motor mikro lan teknologi kontrol mikroelektronik, kanggo entuk flashover nol lan ngilangi kabutuhan tutup pemadam busur.
5 Nampilake desain struktur kanthi interlocking mekanik lan listrik sing dipercaya kanggo njamin operasi sing aman.
6 Aplikasi teknologi zero-crossing ngidini kanggo ngreset paksa lan mateni rong sumber daya ing kahanan darurat, kanggo njamin safety operator.
7 Kalebu fungsi kayata indikasi posisi urip/mati lan fitur gembok kanggo ngisolasi sumber daya saka muatan, njamin fungsi sing bisa dipercaya.
|
|
Ukuran produk lan ukuran instalasi |
|||||||||||||||||||
|
Ing |
A |
A1 |
B |
B1 |
C |
E |
G |
J |
K |
L |
N |
P |
R |
S |
T |
U |
W |
X |
Y |
Y1 |
|
100A/3 |
235 |
232 |
106 |
105 |
134 |
133 |
115 |
221.5 |
84 |
7 |
74.5 |
30 |
14 |
18 |
2.5 |
105 |
126 |
6 |
36 |
86 |
|
100A/4 |
247 |
244 |
106 |
105 |
134 |
133 |
115 |
233.5 |
84 |
7 |
74.5 |
30 |
14 |
18 |
2.5 |
105 |
126 |
6 |
36 |
86 |
|
125A/3 |
292 |
270 |
135 |
128 |
230 |
189 |
145 |
254 |
102 |
7 |
91 |
36 |
20 |
25 |
3.5 |
127 |
158 |
9 |
55 |
125 |
|
125A/4 |
322 |
300 |
135 |
128 |
230 |
189 |
145 |
284 |
102 |
7 |
91 |
36 |
20 |
25 |
3.5 |
127 |
158 |
9 |
55 |
125 |
|
160A/3 |
292 |
270 |
135 |
128 |
230 |
189 |
145 |
254 |
102 |
7 |
91 |
36 |
20 |
25 |
3.5 |
127 |
158 |
9 |
55 |
125 |
|
160A/4 |
322 |
300 |
135 |
128 |
230 |
189 |
145 |
284 |
102 |
7 |
91 |
36 |
20 |
25 |
3.5 |
127 |
158 |
9 |
55 |
125 |
|
250A/3 |
356 |
312 |
170 |
142 |
261 |
208 |
145 |
293 |
102 |
7 |
91 |
50 |
25 |
30 |
3.5 |
142 |
168 |
11 |
60 |
145 |
|
250A/4 |
406 |
362 |
170 |
142 |
261 |
208 |
145 |
343 |
102 |
7 |
91 |
50 |
25 |
30 |
3.5 |
142 |
168 |
11 |
60 |
145 |
|
400A/3 |
487 |
368 |
260 |
222 |
284 |
273 |
189 |
351 |
180 |
9 |
93 |
65 |
32 |
40 |
5 |
222 |
203 |
11 |
83 |
193 |
|
400A/4 |
552 |
433 |
260 |
222 |
284 |
273 |
189 |
416 |
180 |
9 |
93 |
65 |
32 |
40 |
5 |
222 |
203 |
11 |
83 |
193 |
|
630A/3 |
487 |
368 |
260 |
222 |
284 |
273 |
189 |
351 |
180 |
9 |
93 |
65 |
40 |
50 |
6 |
222 |
203 |
12 |
83 |
193 |
|
630A/4 |
552 |
433 |
260 |
222 |
284 |
273 |
189 |
416 |
180 |
9 |
93 |
65 |
40 |
50 |
6 |
222 |
203 |
12 |
83 |
193 |
|
800A/3 |
646 |
519 |
357 |
250 |
363 |
350 |
443 |
499 |
220 |
11 |
87 |
120 |
60 |
69 |
8 |
250 |
207 |
12.5 |
109 |
254 |
|
800A/4 |
760 |
633 |
357 |
250 |
363 |
350 |
443 |
613 |
220 |
11 |
87 |
120 |
60 |
69 |
8 |
250 |
207 |
12.5 |
109 |
254 |
|
1000A/3 |
646 |
519 |
357 |
250 |
363 |
350 |
443 |
499 |
220 |
11 |
87 |
120 |
60 |
69 |
8 |
250 |
207 |
12.5 |
109 |
254 |
|
1000A/4 |
760 |
633 |
357 |
250 |
363 |
350 |
443 |
613 |
220 |
11 |
87 |
120 |
60 |
69 |
8 |
250 |
207 |
12.5 |
109 |
254 |
|
1250A/3 |
646 |
519 |
357 |
250 |
363 |
350 |
443 |
499 |
220 |
11 |
87 |
120 |
80 |
69 |
8 |
250 |
207 |
13 |
110 |
255 |
|
1250A/4 |
760 |
633 |
357 |
250 |
363 |
350 |
443 |
613 |
220 |
11 |
87 |
120 |
80 |
69 |
8 |
250 |
207 |
13 |
110 |
255 |
|
1600A/3 |
646 |
519 |
357 |
250 |
363 |
350 |
443 |
499 |
220 |
11 |
87 |
120 |
80 |
69 |
10 |
250 |
207 |
13 |
110 |
255 |
|
1600A/4 |
760 |
633 |
357 |
250 |
363 |
350 |
443 |
613 |
220 |
11 |
87 |
120 |
80 |
69 |
10 |
250 |
207 |
13 |
110 |
255 |
|
2000A |
800 |
633 |
460 |
|
542 |
|
447 |
610 |
|
|
84.5 |
|
80 |
120 |
10 |
|
|
|
|
169 |
|
2500A |
800 |
633 |
460 |
|
542 |
|
447 |
610 |
|
|
84.5 |
|
80 |
125 |
15 |
|
|
|
|
174 |
|
3200A |
800 |
633 |
460 |
|
542 |
|
447 |
610 |
|
|
84.5 |
|
80 |
130 |
20 |
|
|
|
|
179 |
Sawise operasional, controller terus-terusan conto lan ngetung data saka rong sumber daya kanggo nemtokake nilai voltase efektif. Mikroprosesor ngolah data iki adhedhasar paramèter prasetel, nerbitake prentah mbukak utawa nutup sing cocog kanggo mekanisme operasi liwat sirkuit nyopir sing bisa diatur wektu tundha. Arah motor dikontrol kanggo ngatur operasi biasa lan switch konversi pamisah pindho. Status kesalahan ditampilake nggunakake tabung Nixie LED lan lampu indikator.
